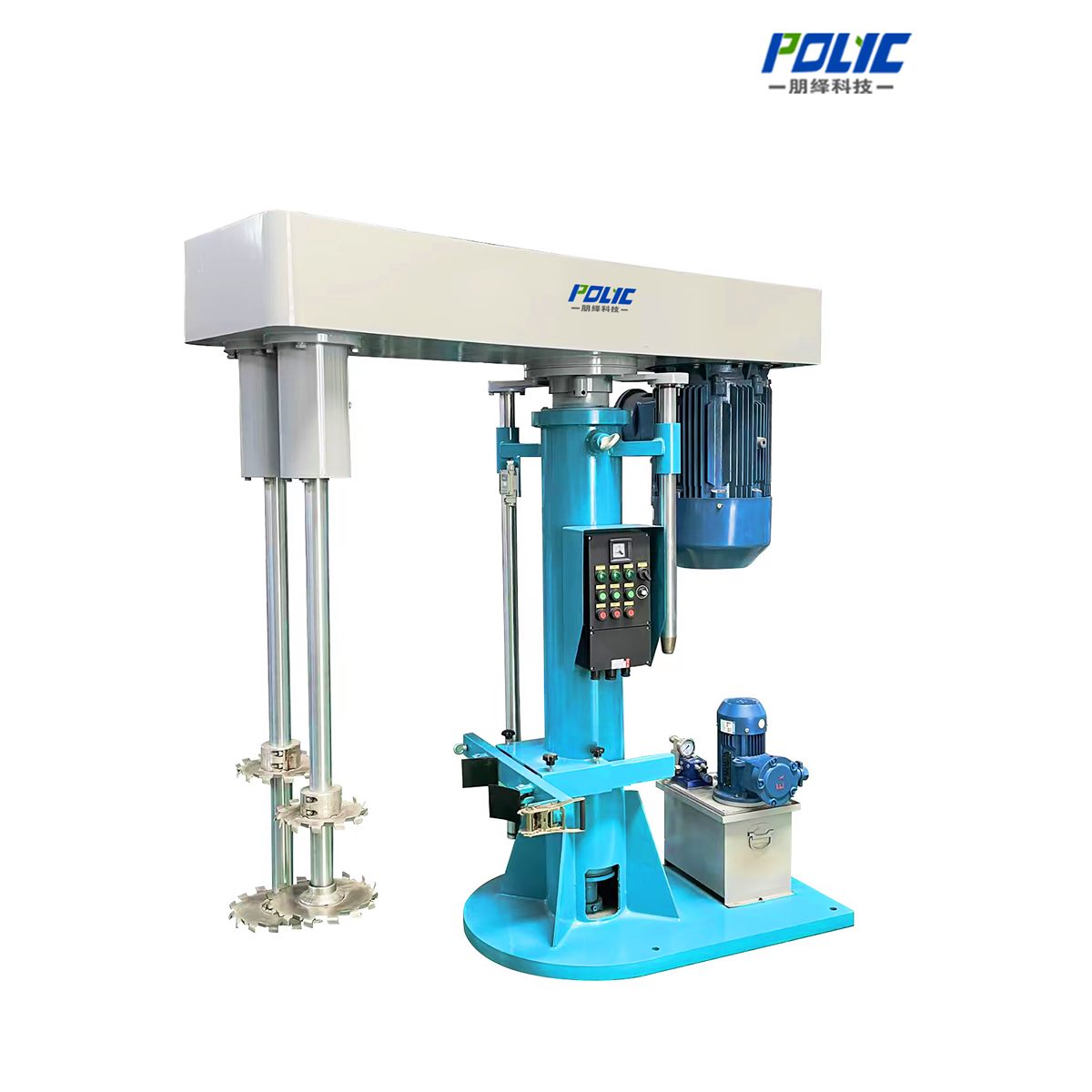

PDH Double-Shaft High Speed Disperser
PDH uses dual shafts for medium-high viscosity and high-solids wet dispersion processes.
Get a Factory Quote
Overview
Configured around the process.
PDH uses dual shafts for medium-high viscosity and high-solids wet dispersion processes.
Key Features
- Two synchronized dispersing shafts
- Expanded shear zone
- Helps reduce vessel-wall dead zones
- Hydraulic lifting and VFD speed control
- For medium-high viscosity and high-solids formulations
Product Details

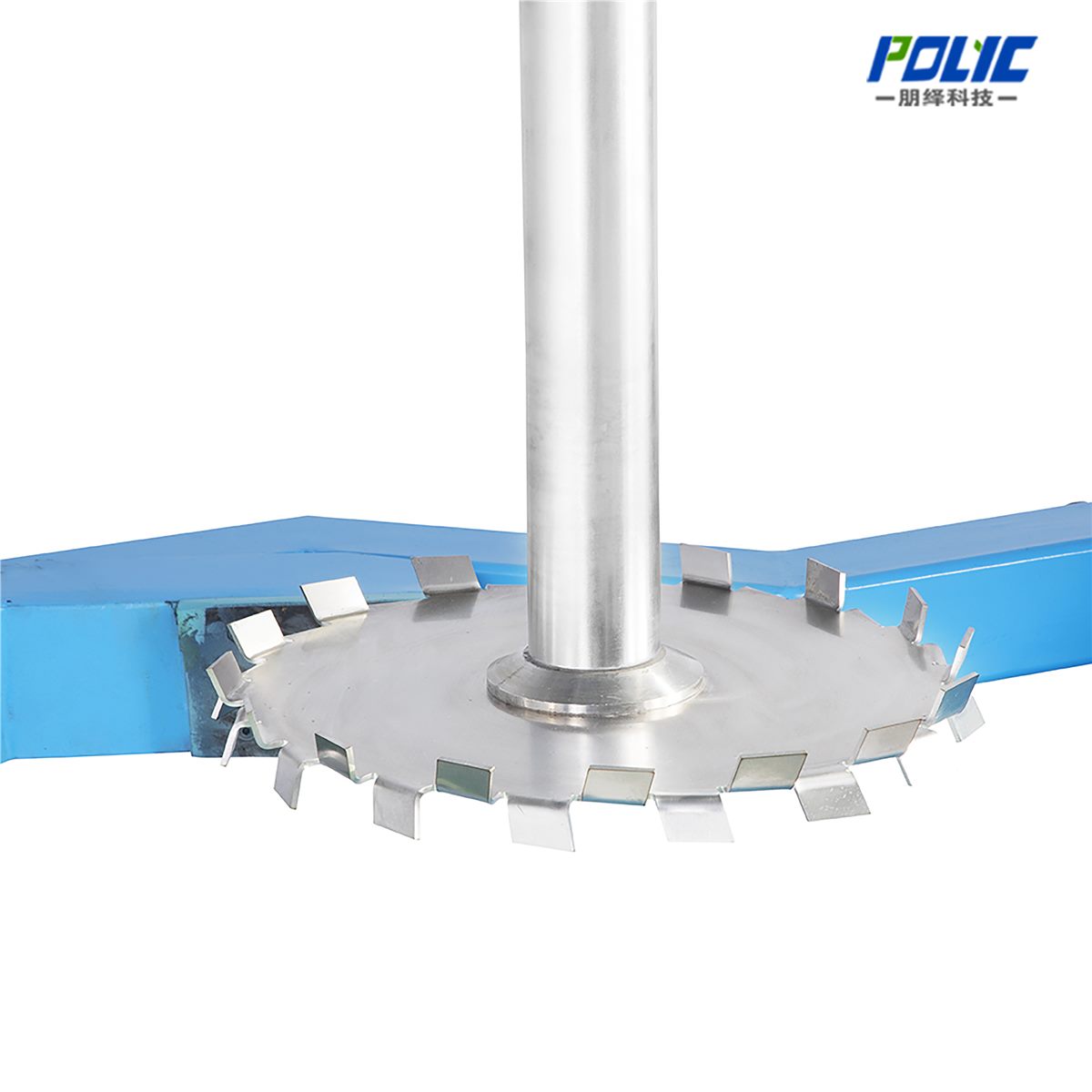

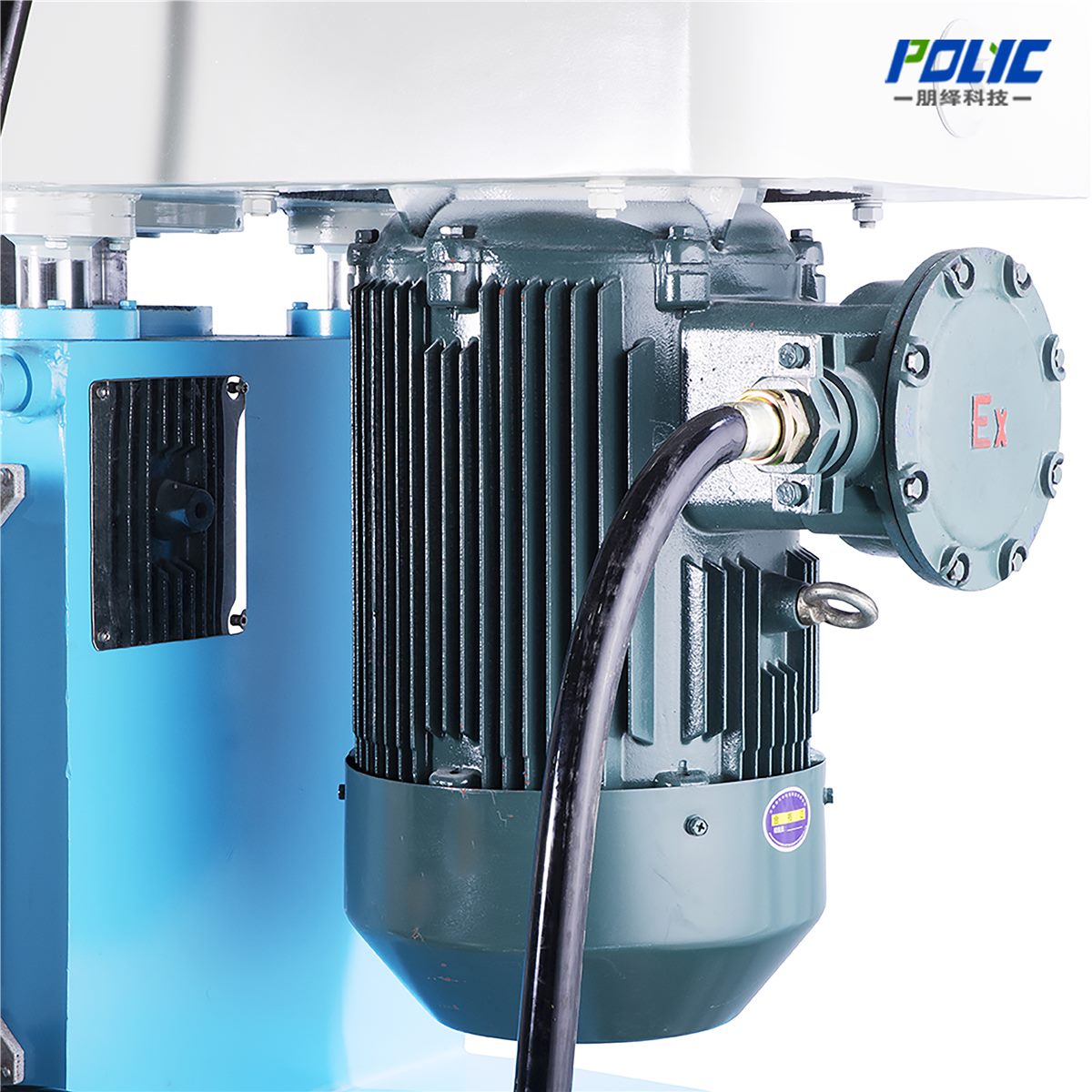

VFD drive, durable V-belt transmission, SKF/NSK bearings, hydraulic lifting, laser-cut serrated disc and stainless steel wetted parts are configured around the process.
Product Details
Engineered component details.
Technical Specifications
PDH Double-Shaft High Speed Disperser Parameters
| Model | Power kW | Speed rpm | Lift mm | Tank L |
|---|---|---|---|---|
| PDH11 | 11 | 0-1200 | 900 | 500 |
| PDH30 | 30 | 0-1200 | 1200 | 1000 |
| PDH45 | 45 | 0-1200 | 1400 | 2000 |
| PDH75 | 75 | 0-1200 | 1600 | 3000 |
Applications
Wet liquid-solid dispersion.
Medium-high viscosity and high-solids dispersion for coatings, inks, resins, adhesives and pastes.
FAQ
PDH Double-Shaft High Speed Disperser FAQ.
What is a PDH Double-Shaft High Speed Disperser used for?
Medium-high viscosity and high-solids dispersion for coatings, inks, resins, adhesives and pastes.
Can it process dry powder?
No. This is a wet-process machine for liquid-solid dispersion.
What warranty is included?
POLYC MACHINE provides a 3-Year Global Warranty and lifetime spare parts support.
Factory Quote
Specify your PDH Double-Shaft High Speed Disperser.
25+ Years · ISO9001 · CE · 3-Year Global Warranty · 30-45 Days
