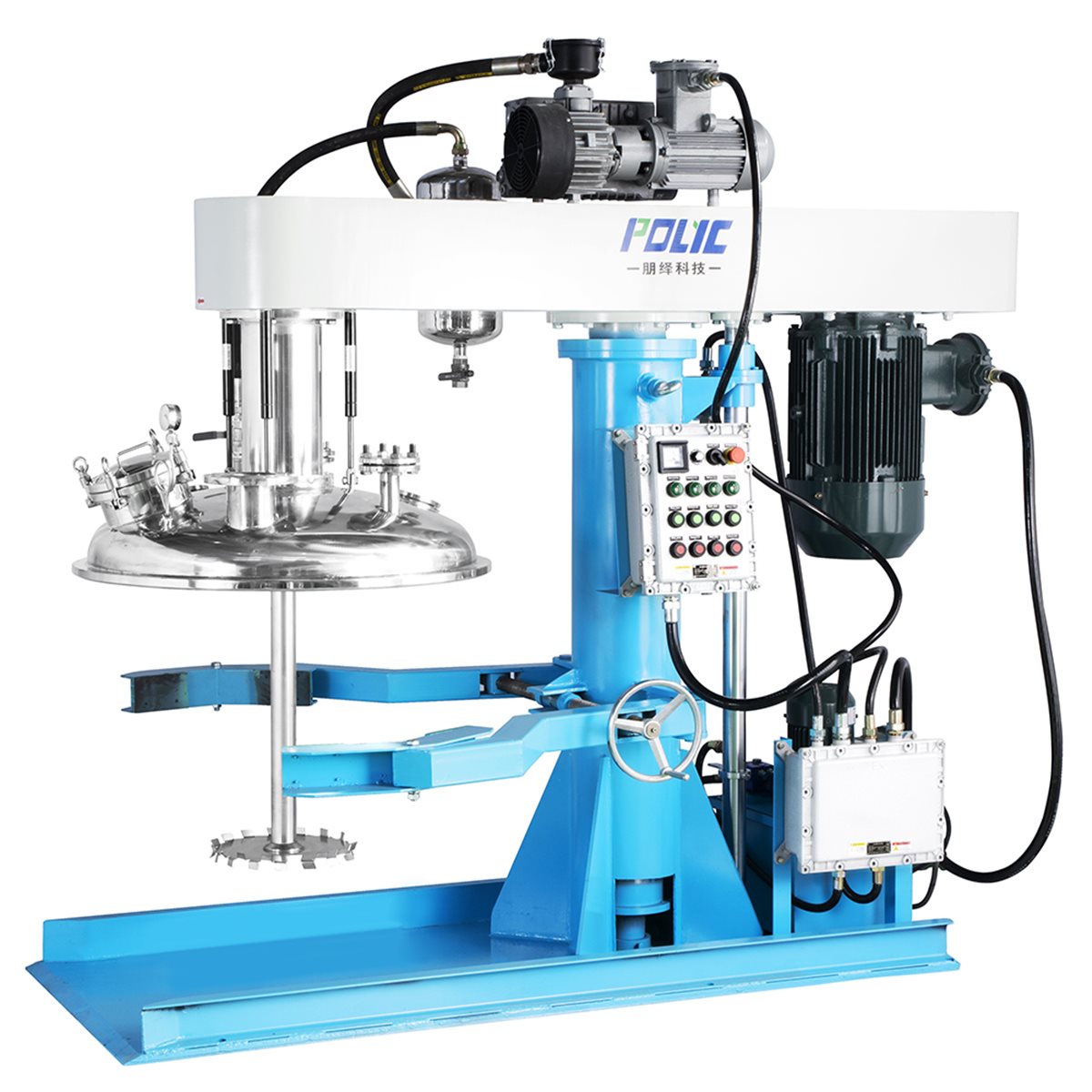

PVM Vacuum High Speed Disperser
PVM is a sealed vacuum high speed disperser for wet dispersion and deaeration.
Get a Factory Quote
Overview
Configured around the process.
PVM is a sealed vacuum high speed disperser for wet dispersion and deaeration.
Key Features
- Sealed negative-pressure dispersion
- Vacuum deaeration for reduced microbubbles
- Hydraulic lifting

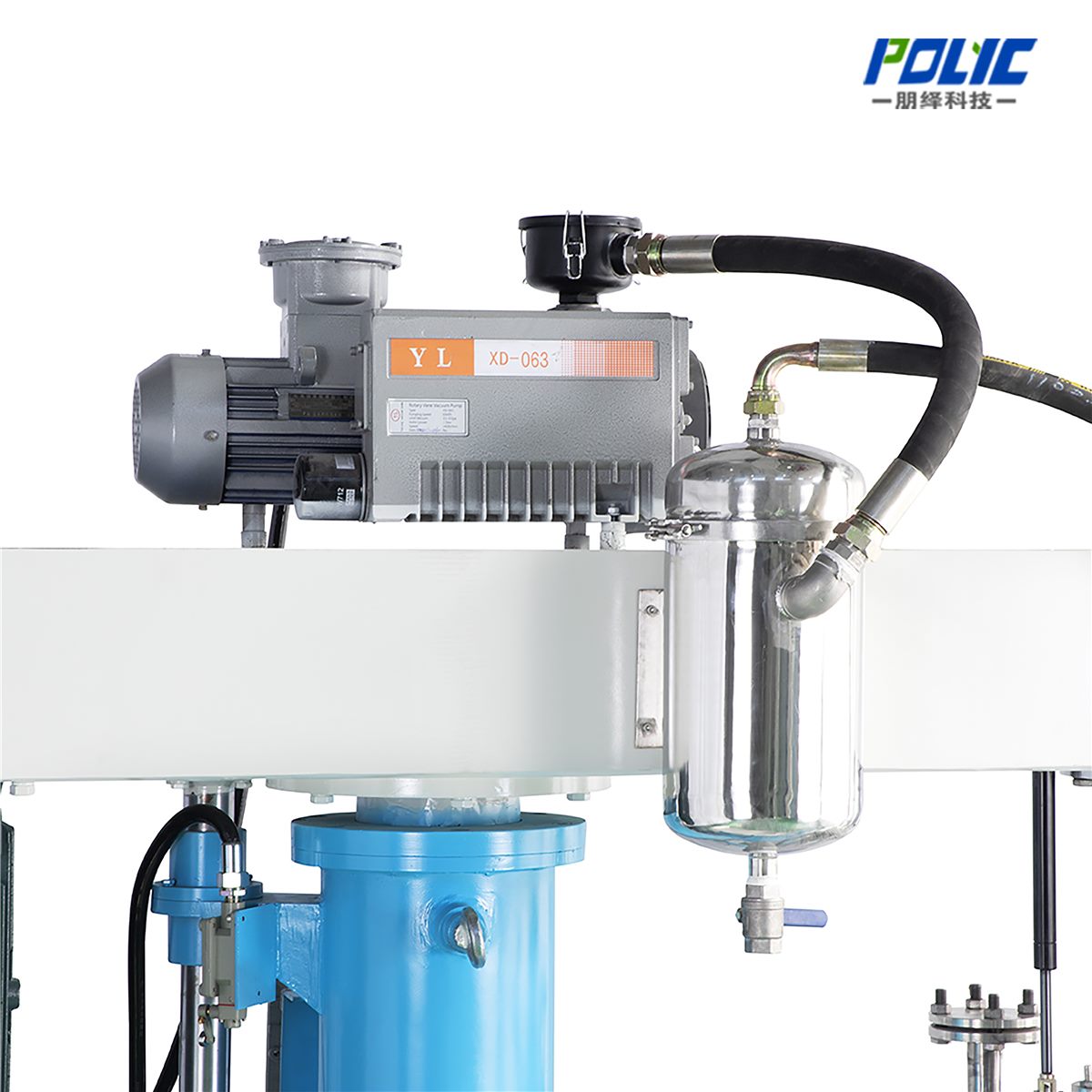

- Vacuum pump configuration

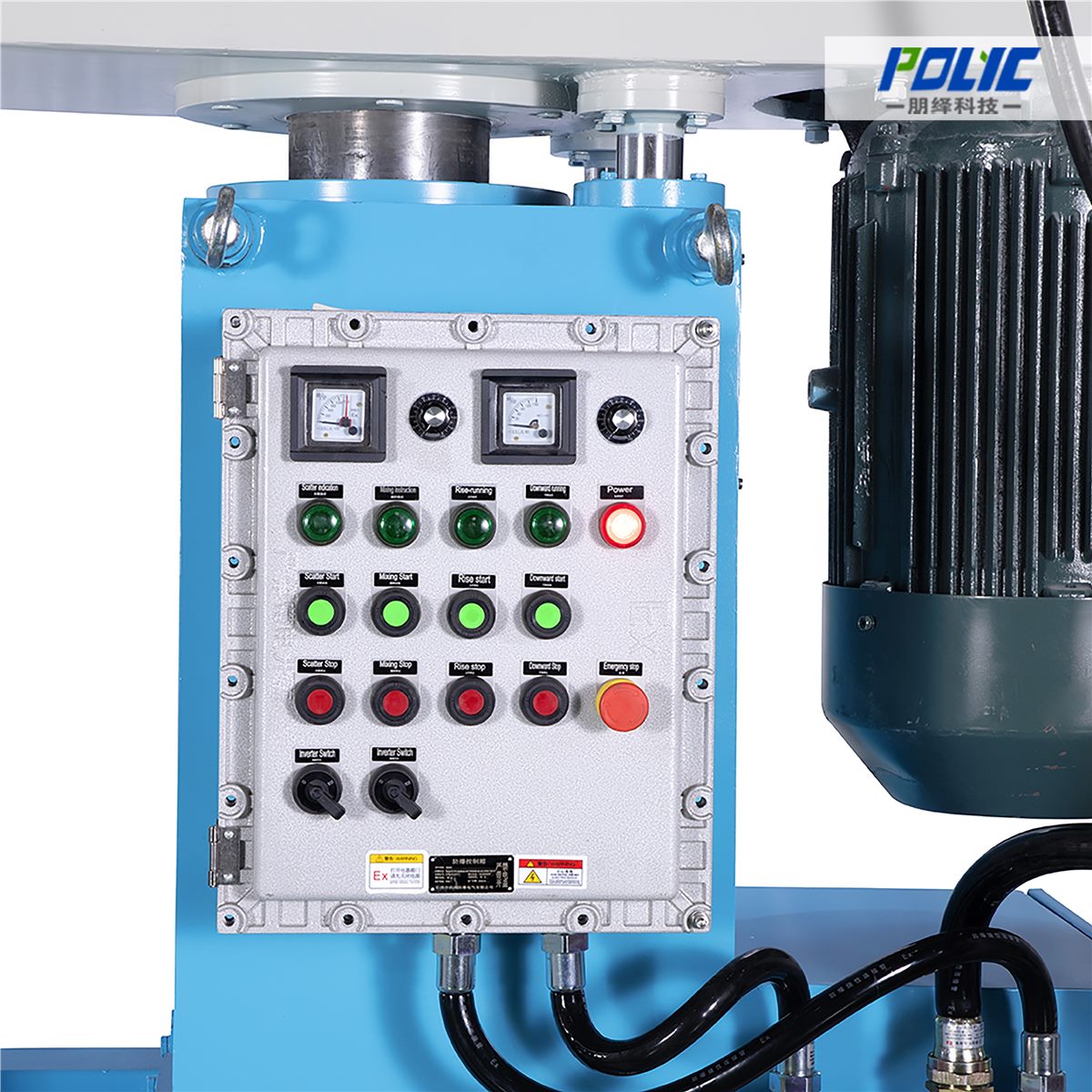

- ATEX and IECEx configurations available
Product Details

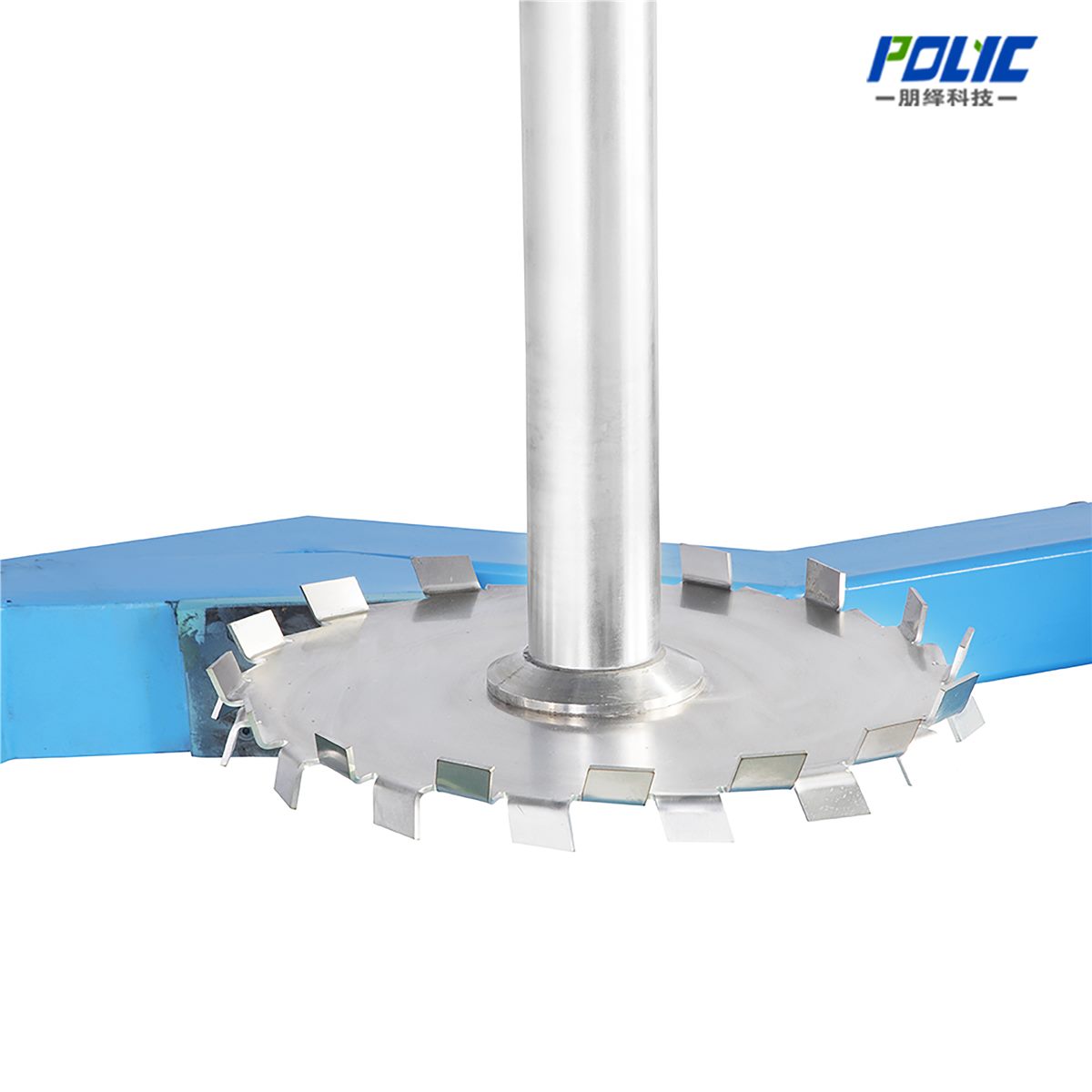

VFD drive, durable V-belt transmission, SKF/NSK bearings, hydraulic lifting, laser-cut serrated disc and stainless steel wetted parts are configured around the process.
Product Details
Engineered component details.
Technical Specifications
PVM Vacuum High Speed Disperser Parameters
| Model | Power kW | Speed rpm | Tank L | Lift mm | Vacuum MPa | Disc mm |
|---|---|---|---|---|---|---|
| PVM200 | 7.5 | 100-1400 | 200 | 900 | <=-0.09 | 200 |
| PVM400 | 15 | 100-1400 | 400 | 900 | <=-0.09 | 300 |
| PVM600 | 22 | 100-1400 | 600 | 1200 | <=-0.09 | 350 |
| PVM1000 | 30 | 100-1400 | 1000 | 1200 | <=-0.09 | 400 |
Applications
Wet liquid-solid dispersion.
Processes requiring wet dispersion, deaeration and sealed operating conditions.
FAQ
PVM Vacuum High Speed Disperser FAQ.
What is a PVM Vacuum High Speed Disperser used for?
Processes requiring wet dispersion, deaeration and sealed operating conditions.
Can it process dry powder?
No. This is a wet-process machine for liquid-solid dispersion.
What warranty is included?
POLYC MACHINE provides a 3-Year Global Warranty and lifetime spare parts support.
Factory Quote
Specify your PVM Vacuum High Speed Disperser.
25+ Years · ISO9001 · CE · 3-Year Global Warranty · 30-45 Days
