PSD Platform / Mezzanine High Speed Disperser
PSD is a platform high speed disperser for large-batch, multi-vessel production configurations.
Get a Factory Quote
Overview
Configured around the process.
PSD is a platform high speed disperser for large-batch, multi-vessel production configurations.
Key Features

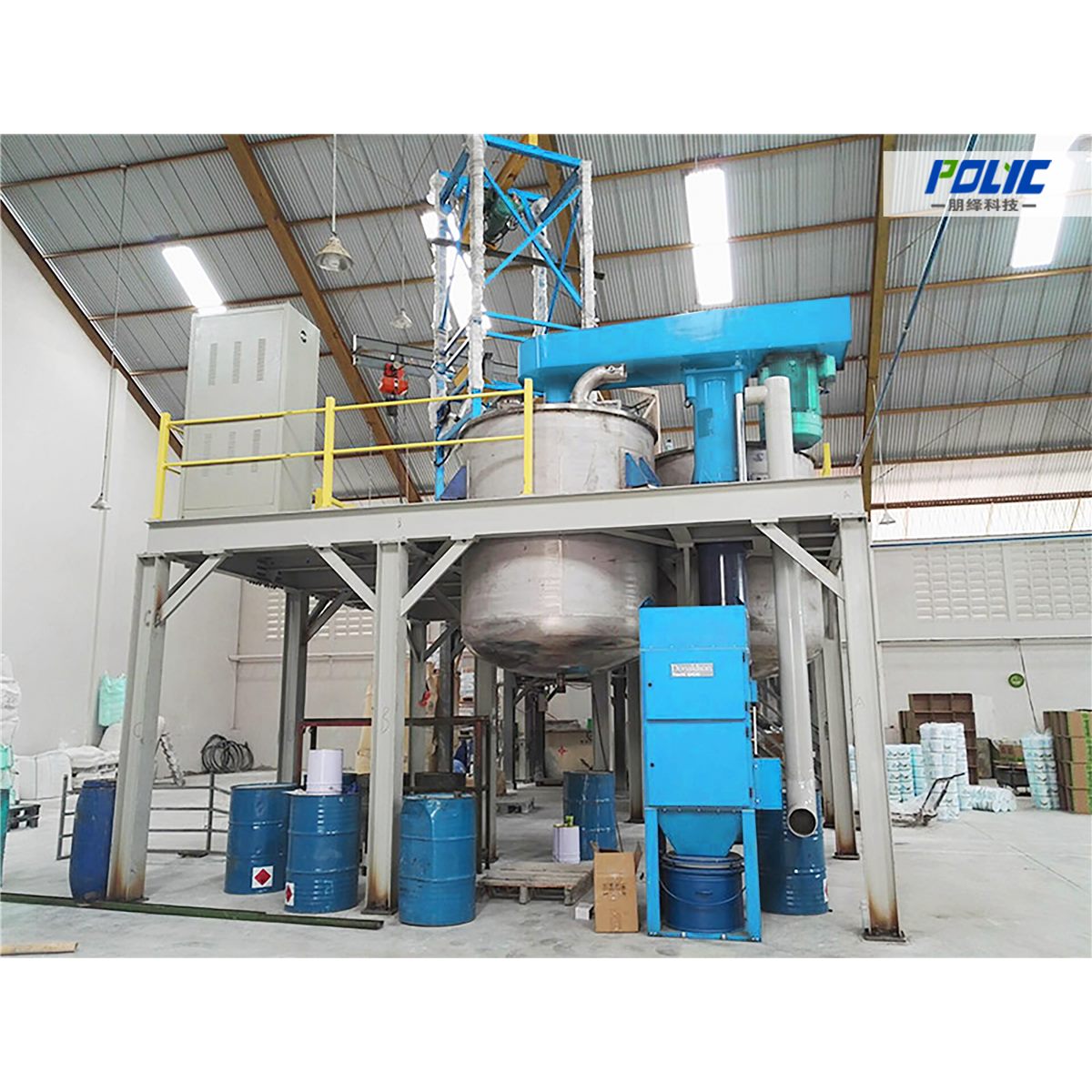

- Platform or mezzanine installation
- Hydraulic lifting
- One head can serve 1-4 vessels
- 360 degree rotation available
- Custom configurations up to 312 kW and 15,000 L per batch
Product Details

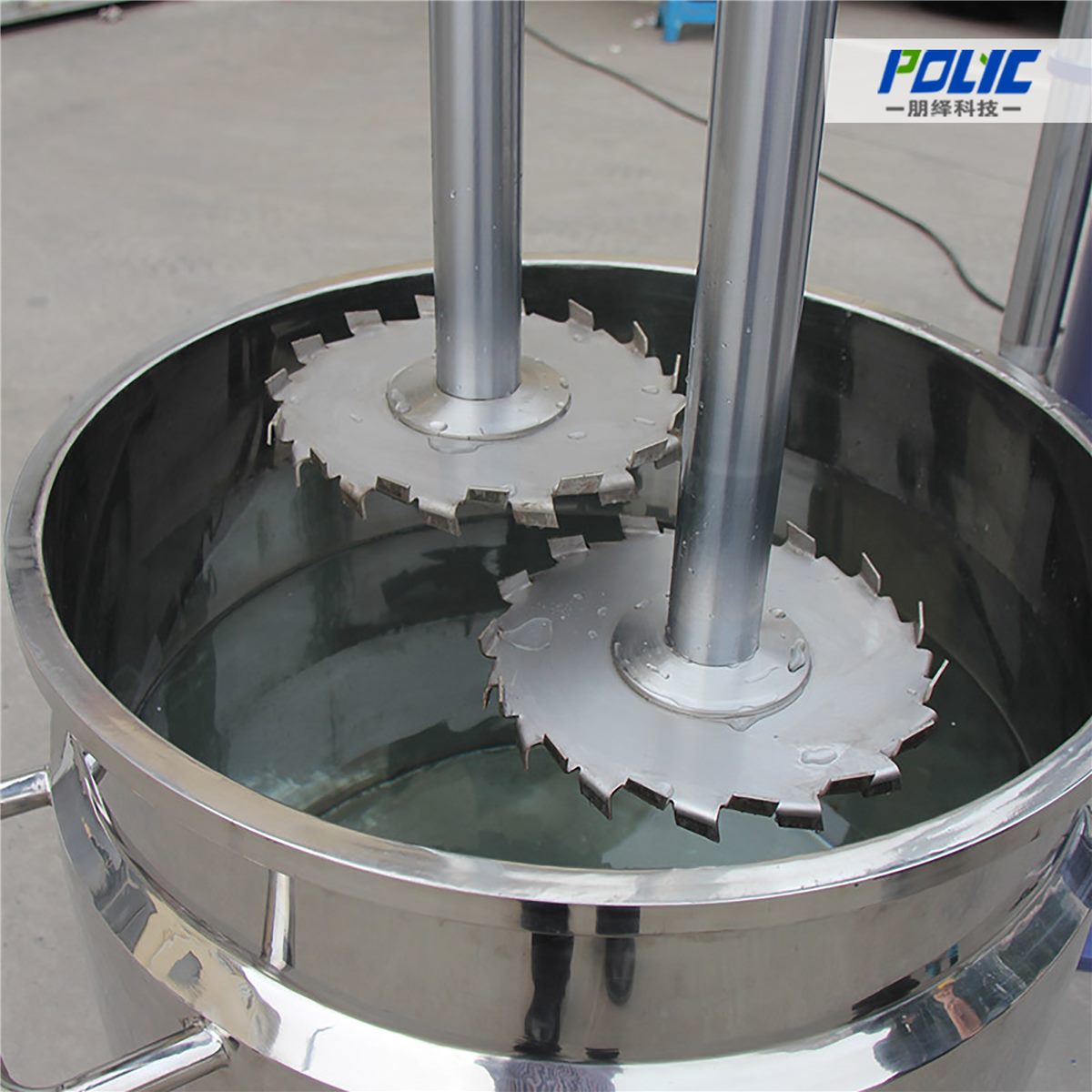

VFD drive, durable V-belt transmission, SKF/NSK bearings, hydraulic lifting, laser-cut serrated disc and stainless steel wetted parts are configured around the process.
Product Details
Engineered component details.
Technical Specifications
PSD Platform / Mezzanine High Speed Disperser Parameters
| Model | Power kW | Speed rpm | Disc mm | Lift mm | Pump kW | Capacity L | Weight kg |
|---|---|---|---|---|---|---|---|
| PSD18.5/22/30/37 | 18.5/22/30/37 | 0-1450 | 350/400 | 1200 | 1.1 | 600-2000 | 1700 |
| PSD45/55 | 45/55 | 0-1200 | 450 | 1300 | 1.5 | 1000-2500 | 2100 |
| PSD75/90 | 75/90 | 0-1200 | 600 | 1600 | 2.2 | 5000 | 2600 |
Applications
Wet liquid-solid dispersion.
Large-batch paint, ink, coating, resin and chemical wet liquid-solid production.
FAQ
PSD Platform / Mezzanine High Speed Disperser FAQ.
What is a PSD Platform / Mezzanine High Speed Disperser used for?
Large-batch paint, ink, coating, resin and chemical wet liquid-solid production.
Can it process dry powder?
No. This is a wet-process machine for liquid-solid dispersion.
What warranty is included?
POLYC MACHINE provides a 3-Year Global Warranty and lifetime spare parts support.
Factory Quote
Specify your PSD Platform / Mezzanine High Speed Disperser.
25+ Years · ISO9001 · CE · 3-Year Global Warranty · 30-45 Days
