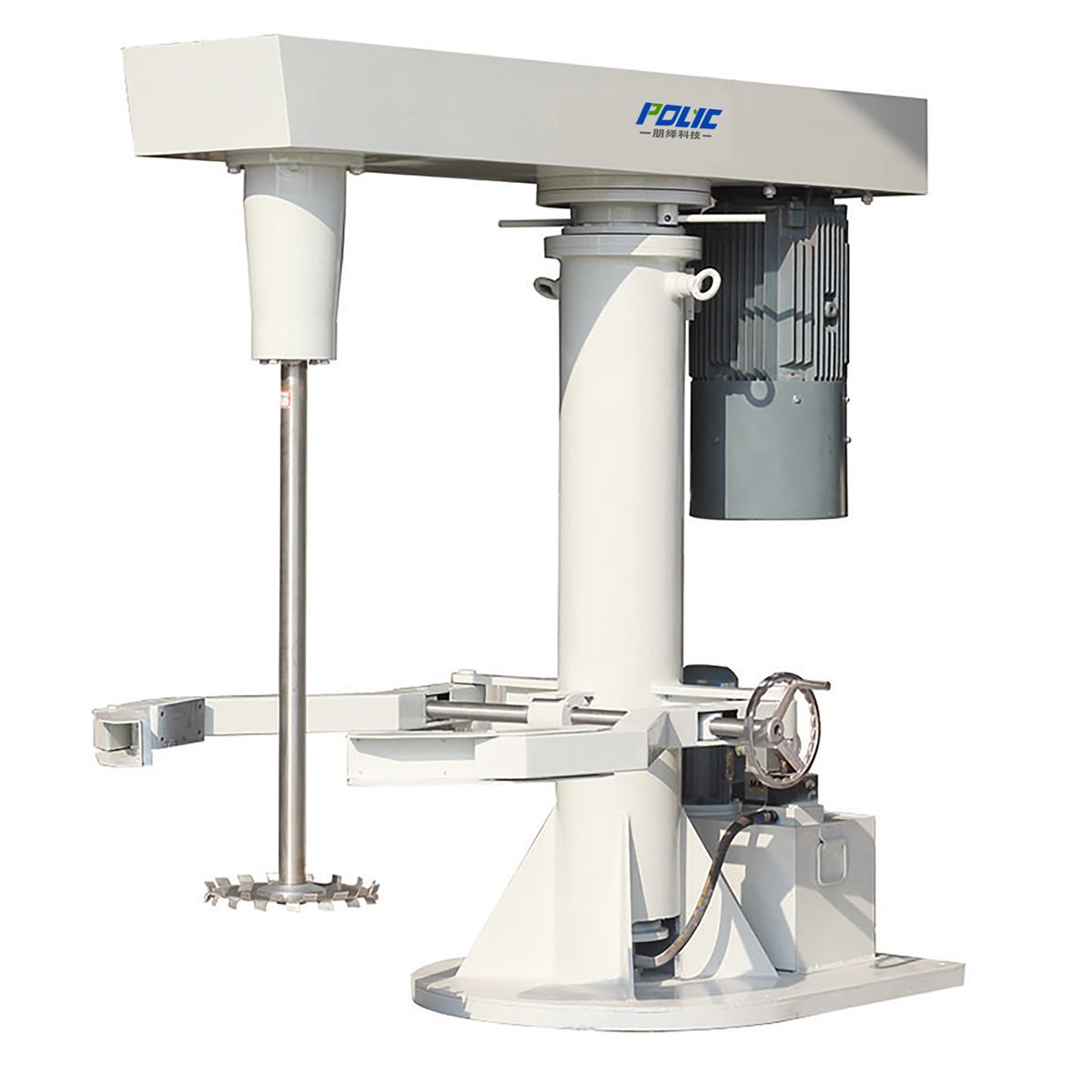

PDM Single-Shaft High Speed Disperser
PDM is a single-shaft high speed disperser for wet liquid-solid dispersion in paints, coatings, inks, resins, adhesives and slurries.
Get a Factory Quote
Overview
Configured around the process.
PDM is a single-shaft high speed disperser for wet liquid-solid dispersion in paints, coatings, inks, resins, adhesives and slurries.
Key Features
- VFD stepless speed adjustment

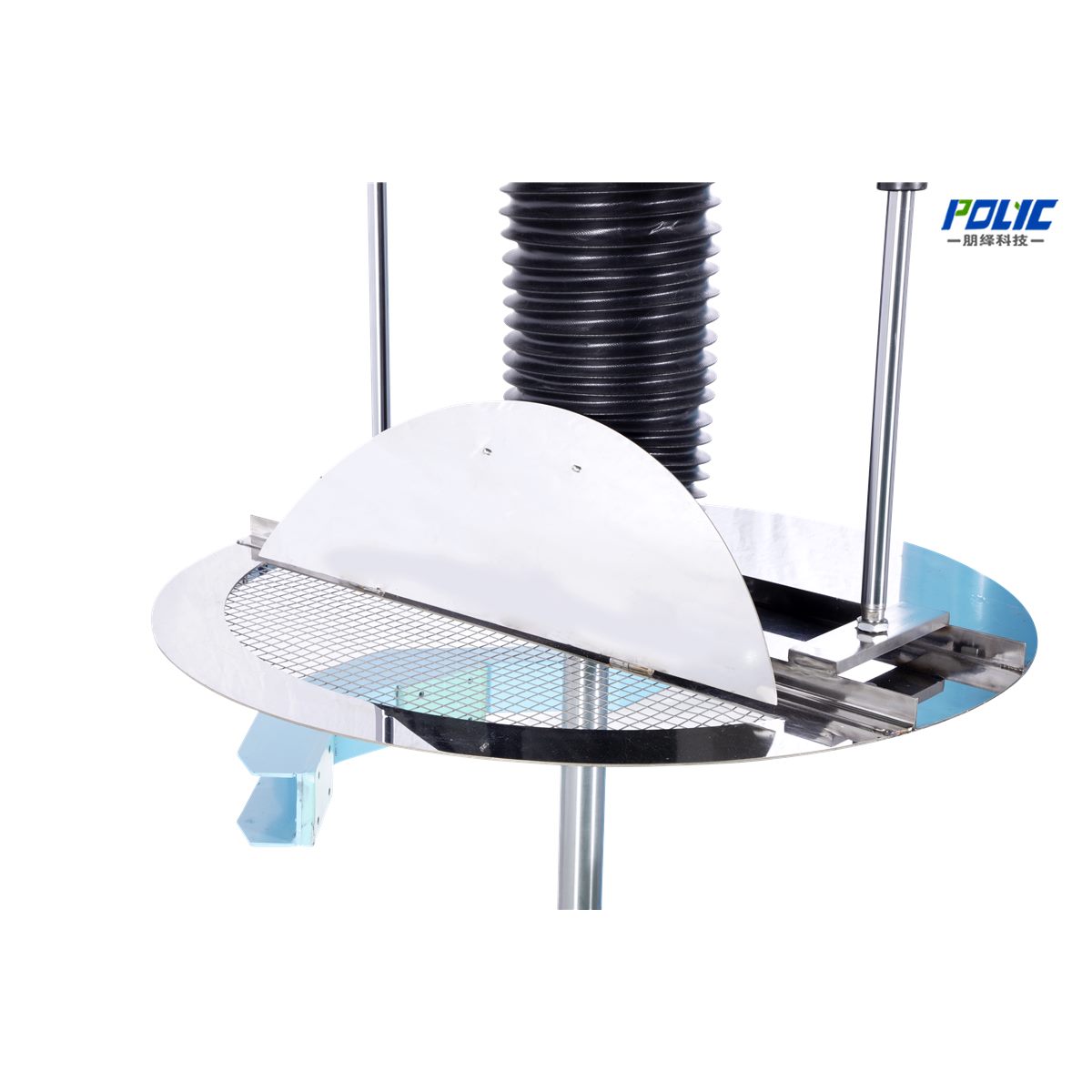

- Hydraulic lifting
- Adjustable vessel clamping

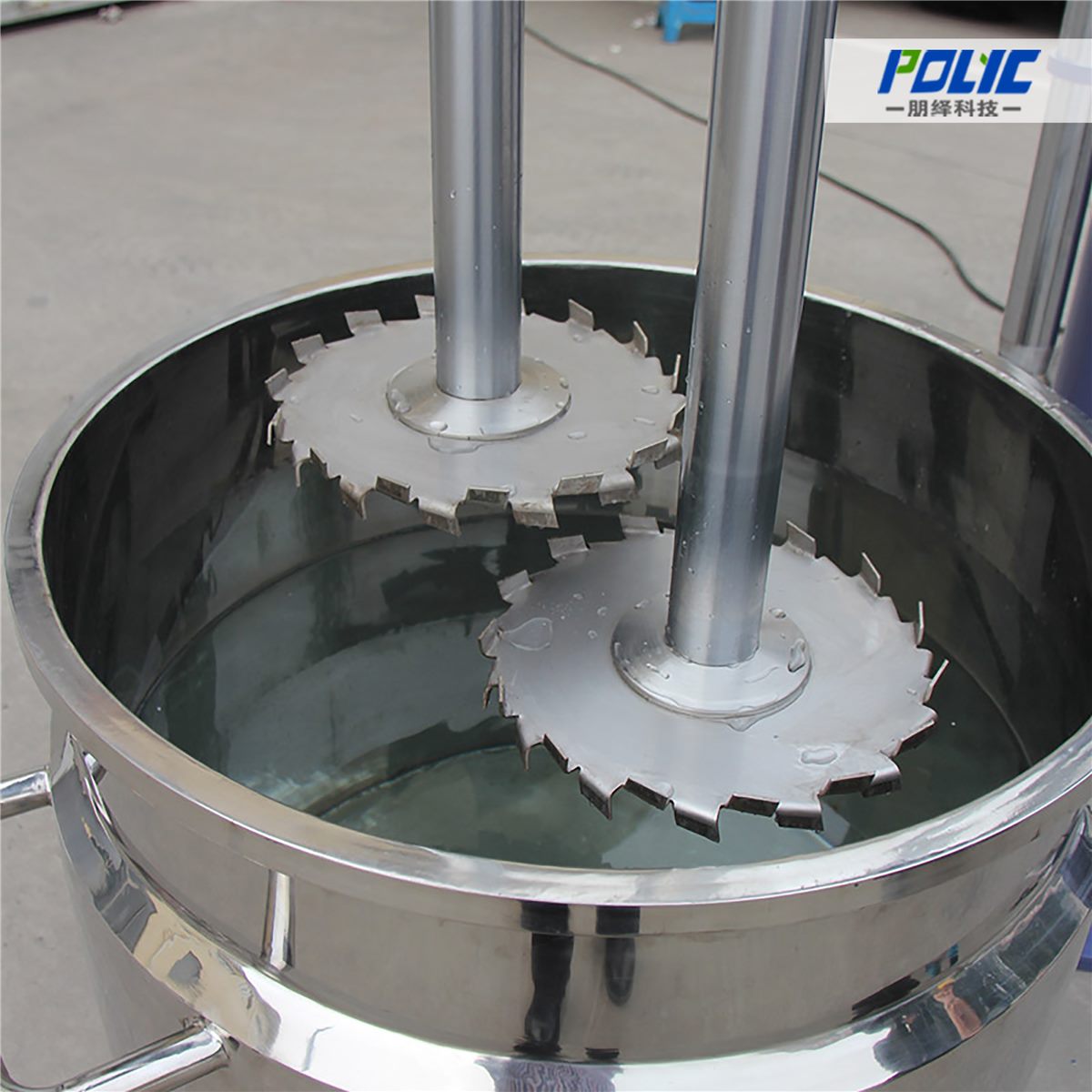

- Stainless steel shaft and serrated disc
- For wet liquid-solid materials only; not for dry powder
Product Details
VFD drive, durable V-belt transmission, SKF/NSK bearings, hydraulic lifting, laser-cut serrated disc and stainless steel wetted parts are configured around the process.
Product Details
Engineered component details.
Technical Specifications
PDM Single-Shaft High Speed Disperser Parameters
| Model | Power kW | Speed rpm | Disc mm | Lift mm | Pump kW | Capacity L | Weight kg |
|---|---|---|---|---|---|---|---|
| PDM1.5/2.2 | 1.1/2.2 | 0-1450 | 150 | 600 | 0.55 | 50-100 | 120 |
| PDM4/5.5 | 4/5.5 | 0-1450 | 200 | 800 | 0.55 | 100-200 | 400 |
| PDM7.5/11/15 | 7.5/11/15 | 0-1450 | 250 | 900 | 0.75 | 400-600 | 800 |
| PDM18.5/22/30/37 | 18.5/22/30/37 | 0-1450 | 350/400 | 1200 | 1.1 | 600-2000 | 1700 |
| PDM45/55 | 45/55 | 0-1200 | 450 | 1300 | 1.5 | 1000-2500 | 2100 |
| PDM75/90 | 75/90 | 0-1200 | 600 | 1600 | 2.2 | 5000 | 2600 |
Applications
Wet liquid-solid dispersion.
Wet dispersing and mixing of paints, inks, color pastes, adhesives and chemical formulations.
FAQ
PDM Single-Shaft High Speed Disperser FAQ.
What is a PDM Single-Shaft High Speed Disperser used for?
Wet dispersing and mixing of paints, inks, color pastes, adhesives and chemical formulations.
Can it process dry powder?
No. This is a wet-process machine for liquid-solid dispersion.
What warranty is included?
POLYC MACHINE provides a 3-Year Global Warranty and lifetime spare parts support.
Factory Quote
Specify your PDM Single-Shaft High Speed Disperser.
25+ Years · ISO9001 · CE · 3-Year Global Warranty · 30-45 Days
